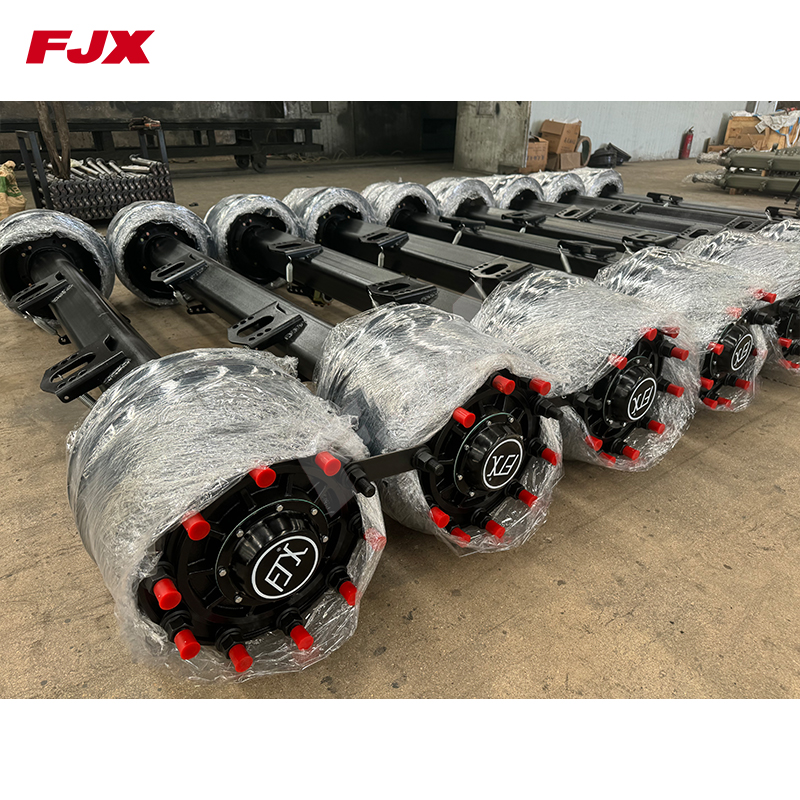

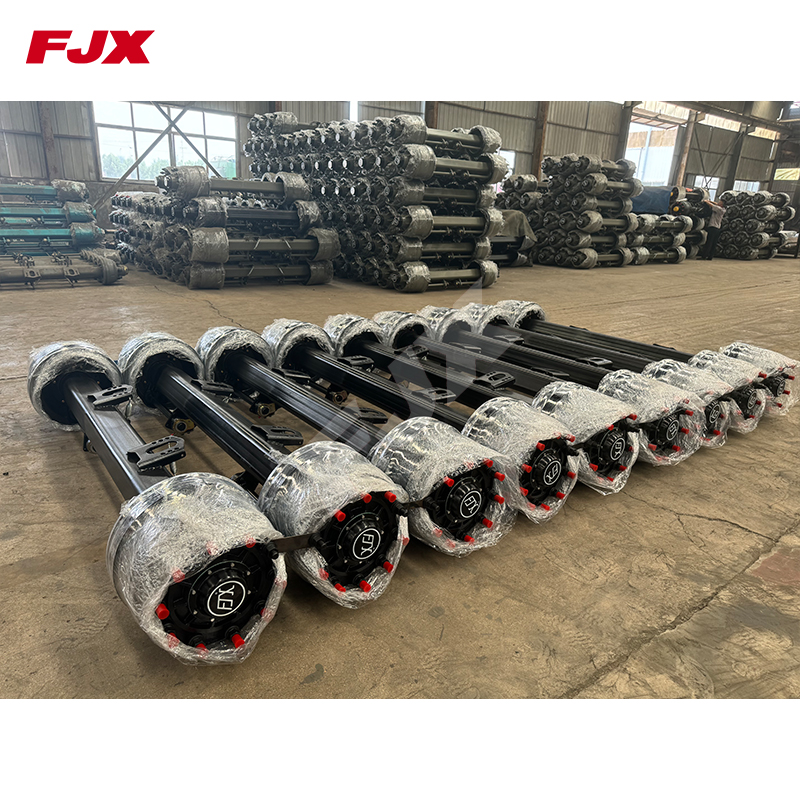

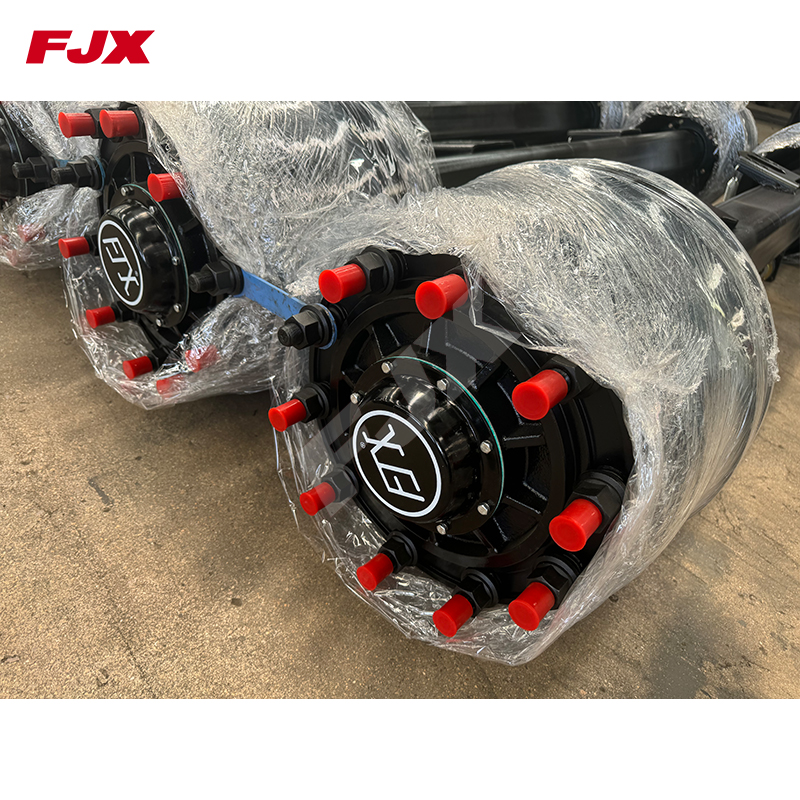

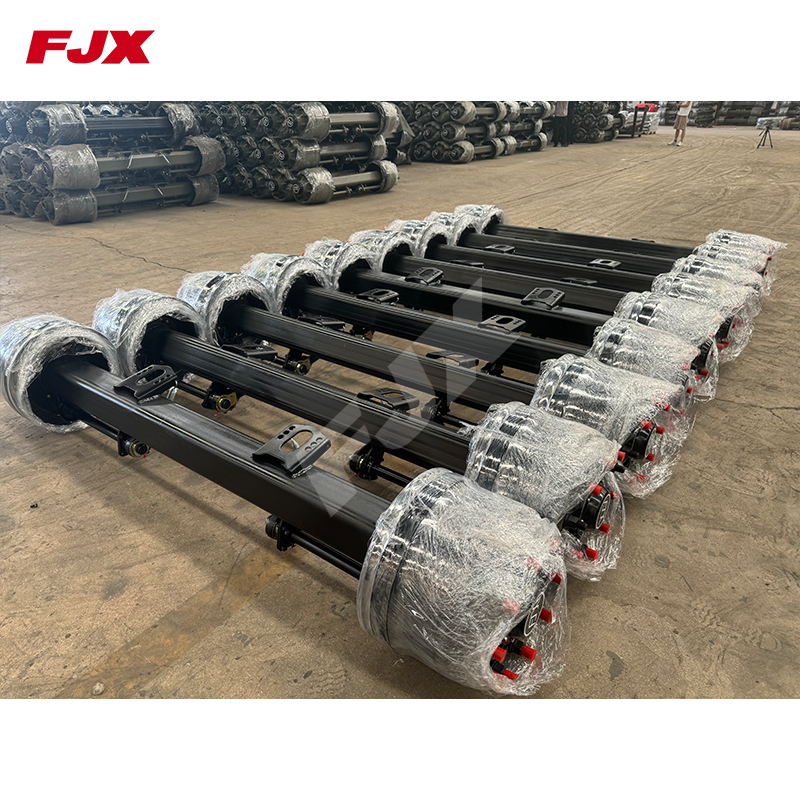

16-ton And 13-ton Axle FUWA Model With Axle Spacing Of 1840 Millimeters And 2040 Millimeters. Single Tire Drum Brakes.
16-ton And 13-ton Axle FUWA Model With Axle Spacing Of 1840 Millimeters And 2040 Millimeters. Single Tire Drum Brakes.
16-ton And 13-ton Axle FUWA Model With Axle Spacing Of 1840 Millimeters And 2040 Millimeters. Single Tire Drum Brakes.
16-ton And 13-ton Axle FUWA Model With Axle Spacing Of 1840 Millimeters And 2040 Millimeters. Single Tire Drum Brakes.
16-ton And 13-ton Axle FUWA Model With Axle Spacing Of 1840 Millimeters And 2040 Millimeters. Single Tire Drum Brakes.
1 / 5
16-ton And 13-ton Axle FUWA Model With Axle Spacing Of 1840 Millimeters And 2040 Millimeters. Single Tire Drum Brakes.
16-ton And 13-ton Axle FUWA Model With Axle Spacing Of 1840 Millimeters And 2040 Millimeters. Single Tire Drum Brakes.
16-ton And 13-ton Axle FUWA Model With Axle Spacing Of 1840 Millimeters And 2040 Millimeters. Single Tire Drum Brakes.
16-ton And 13-ton Axle FUWA Model With Axle Spacing Of 1840 Millimeters And 2040 Millimeters. Single Tire Drum Brakes.
16-ton And 13-ton Axle FUWA Model With Axle Spacing Of 1840 Millimeters And 2040 Millimeters. Single Tire Drum Brakes.

16-ton And 13-ton Axle FUWA Model With Axle Spacing Of 1840 Millimeters And 2040 Millimeters. Single Tire Drum Brakes.

Send Inquiry

Product Description

Product Image
Product Description
  • High-end good material: Light duty type and heavy duty both have.
  • Skilled and skilled: Perfect welding technology and painting technology.
  • Standard size: Standard platform and bolt.

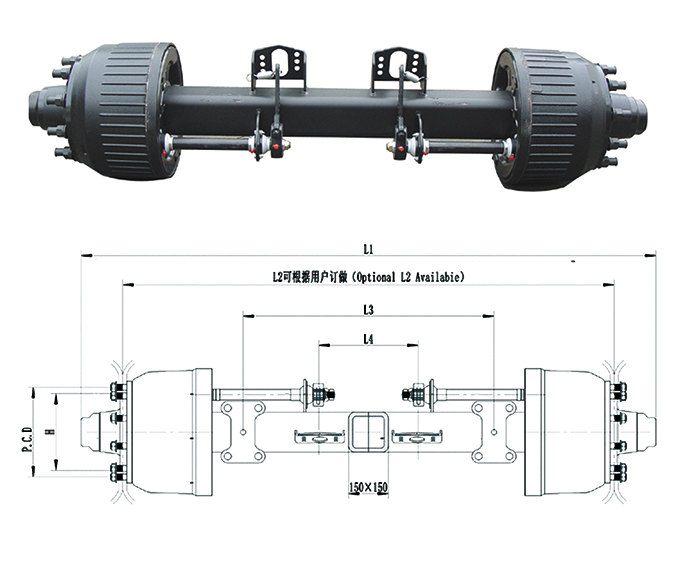

Product Specifications Drawing
Technical Parameters
Model Capacity (kg) Brake size (mm) Track (mm) Axle Tube (mm) Studs PCD Total length (mm) Bearing
FJX-12T 12000 S420*180 1840 150*150*12 10*M22*1.5 ISO 335 ~2144 32313/33118
FJX-14T 14000 S420*180 1840 150*150*14 10*M22*1.5 ISO 335 ~2198 32315/32319
FJX-16T 16000 S420*200 1850 150*150*16 10*M22*1.5 ISO 335 ~2272 32314/32222
Product Advantages
  • Specially processed one quality low alloy steel axle tube, which has strong bearing capacity, long service life, light weight and excellent performance.
  • "P" type integral straight or tapered shaft head, bearing place adopts intermediate frequency quenching, strong anti fatigue ability.
  • The high precision brake system makes the braking performance more stable.
  • "Q" type heavy brake, and equipped with powerful return spring.
  • High performance asbestos free brake friction plate, good braking performance, long wear resistance and long service life.
  • Camshaft with special seals, to ensure that grease does not enter the brake drum, to ensure safety.
  • The new sealed wheel hub with O sealing ring, good sealing performance.
  • XHP222 mobil oil extended maintenance free time.

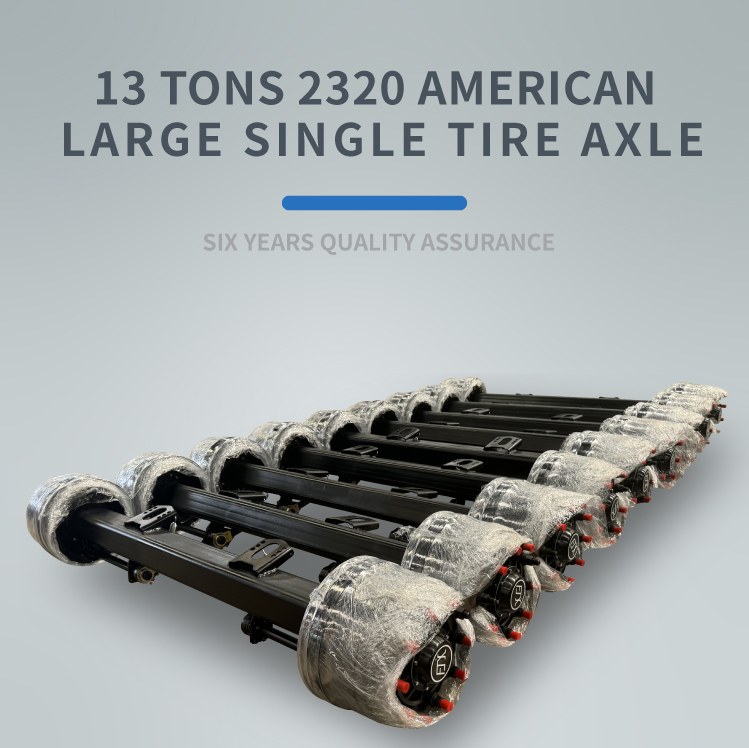

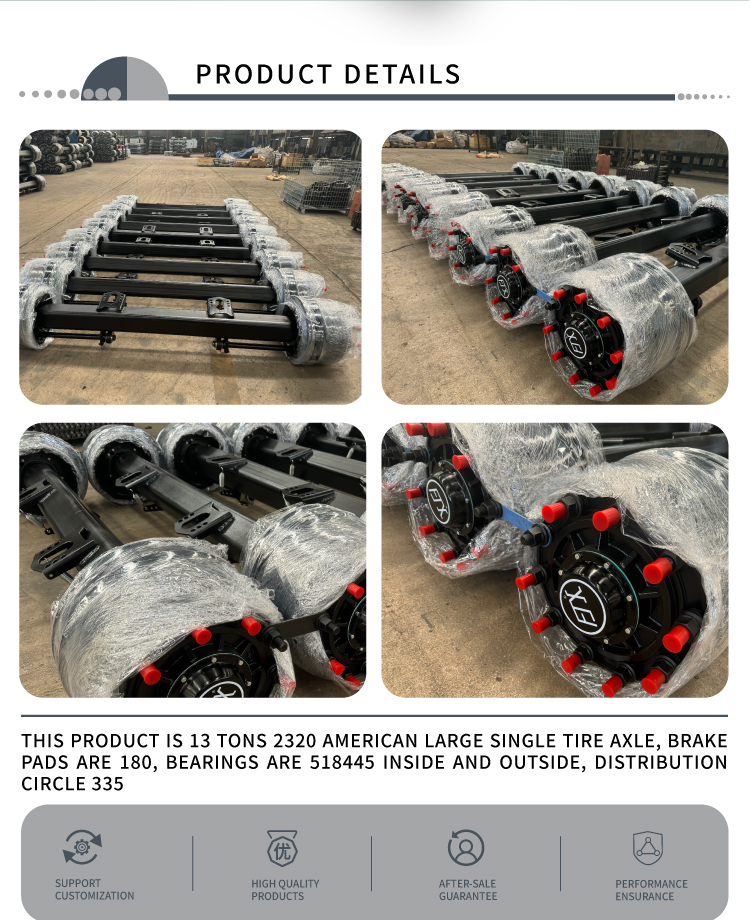

Product Gallery
Product Details 1 Product Details 2 Product Details 3 Product Details 4 Product Details 5 Product Details 6 Product Details 7
Frequently Asked Questions
What types of load capacities are available for these axles?
We offer capacities of 12,000 kg (12T), 14,000 kg (14T), and 16,000 kg (16T) to suit both light-duty and heavy-duty application requirements.
What makes the axle tube highly durable and lightweight?
The axles are manufactured using a specially processed, one-quality low alloy steel axle tube. This provides strong bearing capacity, light weight, and a long overall service life.
How is the braking performance optimized?
Our axles feature a high-precision "Q" type heavy brake system equipped with a powerful return spring and high-performance asbestos-free brake friction plates for stable, wear-resistant, and long-lasting performance.
How does the design ensure grease does not leak into the brakes?
The camshafts are fitted with special seals, and the wheel hub is designed with a new O-sealing ring to provide superior sealing and guarantee that grease does not leak into the brake drum.
Does this product require frequent lubrication maintenance?
No, the axles utilize XHP222 Mobil grease, which significantly extends the maintenance-free operational period, lowering your overall operating costs.
Are the sizes and parts standardized?
Yes, they are designed with standard platform dimensions, bolt patterns, and ISO standard studs (10*M22*1.5) to ensure easy compatibility and installation.
