Basic Information
Certification
ISO/TS16949, ISO9001
Brake Type

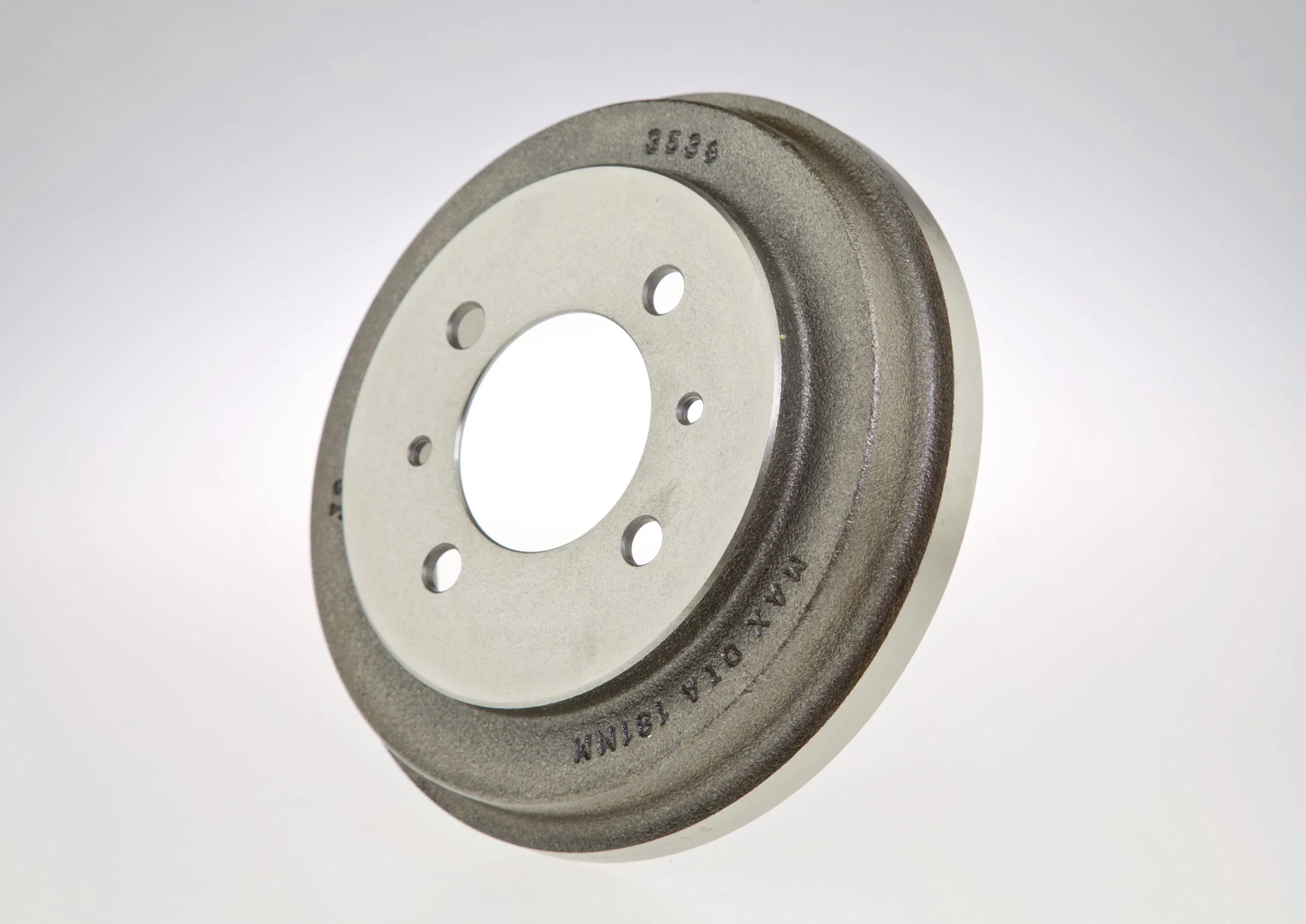

Brake Drum / Disc
OEM#
90111242; 569030; 90008005
Technical Specifications
| Parameter |
Detail |
| OEM Reference | 7L6615302E; 95535140250; 7L8615302; 95535140251 |
| Application | for AUDI / PORSCHE / VOLKSWAGEN |

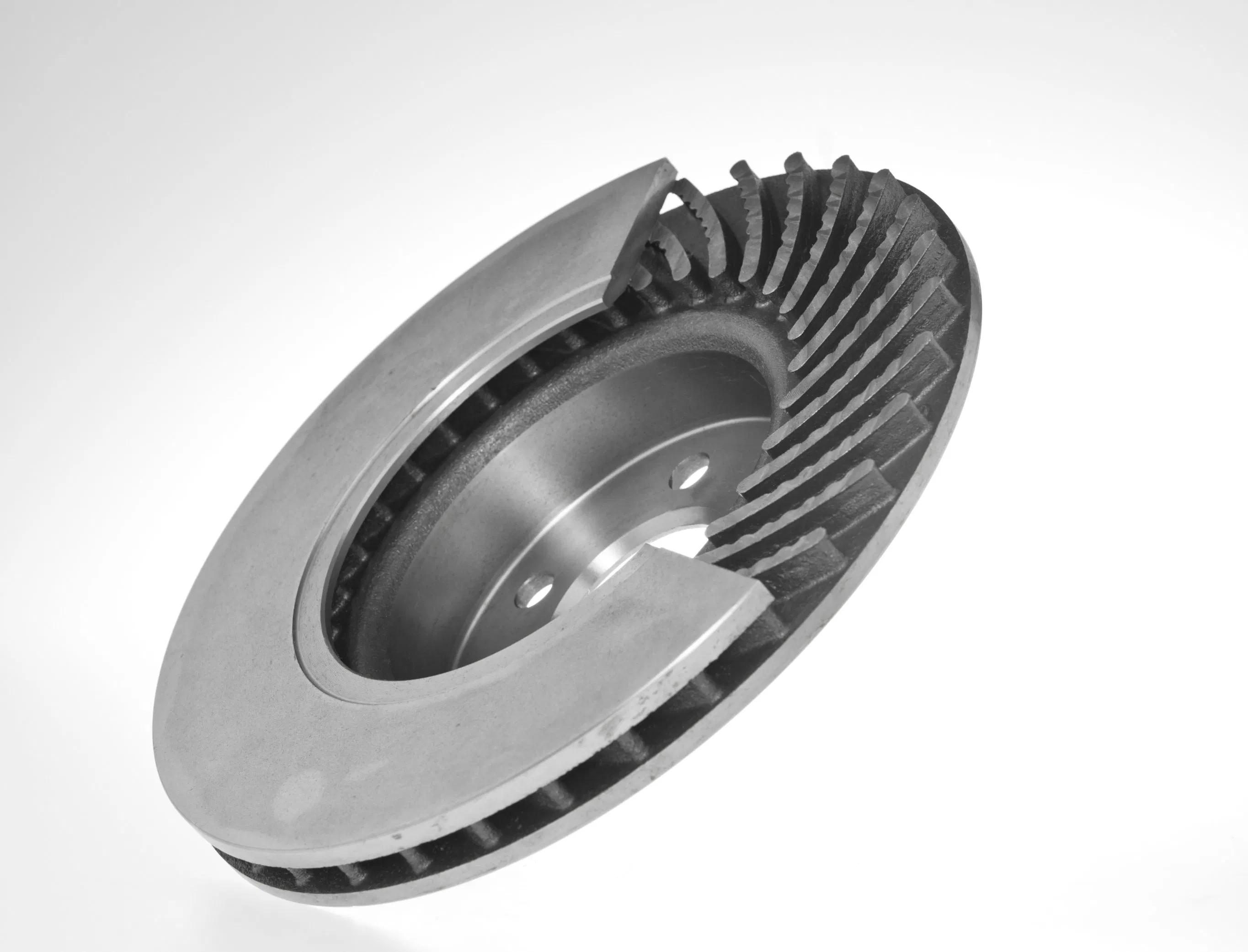

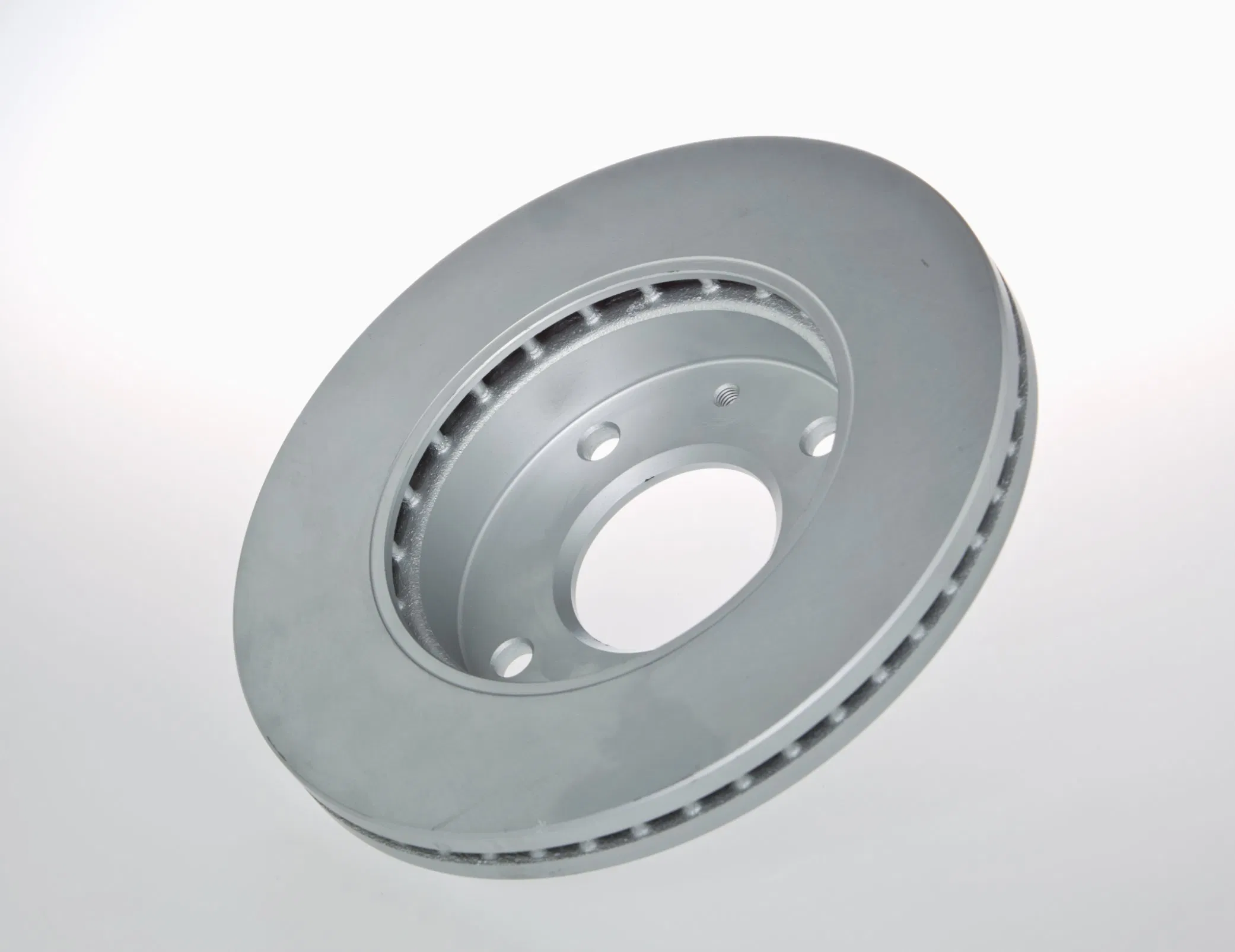

| Type | Vented |
| Diameter [mm] | 350 |
| Thickness [mm] | 34 |
| Min. Thickness [mm] | 32 |
| Height [mm] | 68.5 |
| Weight [kgs] | 12.08 |

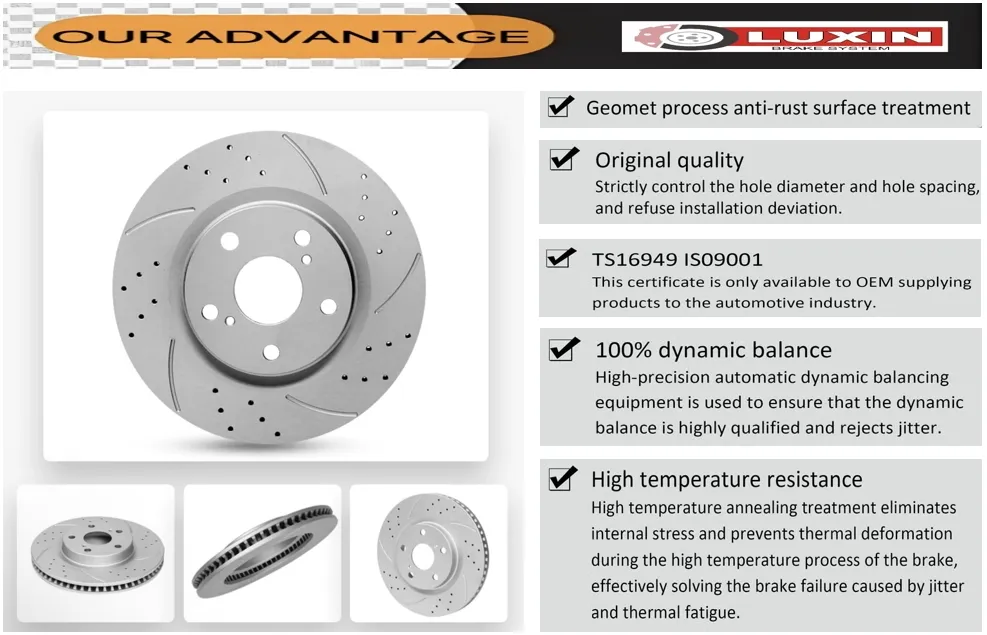

Key Features
- Developed to meet OE quality standards, including weight and braking surface thickness
- High-quality casting process for superior durability
- Digitally machined surfaces increase friction, reducing stopping distance
- Available painted & coated discs guard against rust and facilitate easy fitting
- Over 2,500 references covering European, American, Japanese, and Korean passenger cars
- 100% inspection before packing
- One year / 30,000 kilometers warranty
Chemical Composition (G3000)
| Iron % | 93.1 - 94.5 |
| Carbon (C) % | 3.00 - 3.50 |
| Silicon (Si) % | 1.90 - 2.30 |
| Manganese (Mn) % | 0.60 - 0.90 |
| Sulfur (S) % | ≤ 0.12 |
| Phosphorus (P) % | ≤ 0.10 |
| Tension Strength | ≥ 200N/mm² |
| Brinell Hardness | 190 - 230 HB |

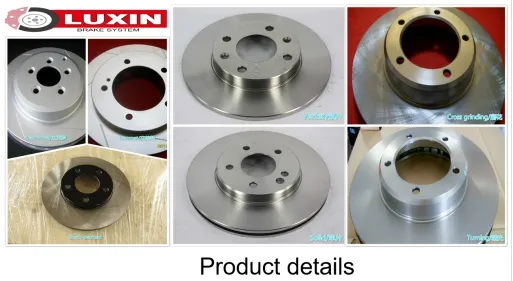

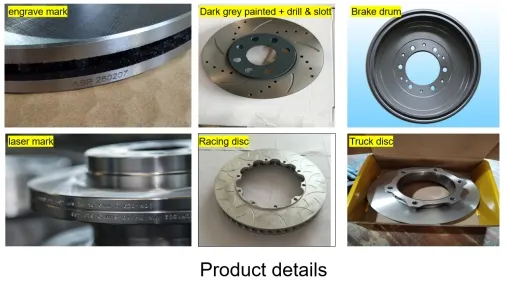

Product Details & Types
Available Variations:
Plain surface, Drilled & Slotted, and performance-oriented grindings. Coated options include Black Painted, Geomet, Dacromet, and Galvanized/Zinc-plated finishes as requested.

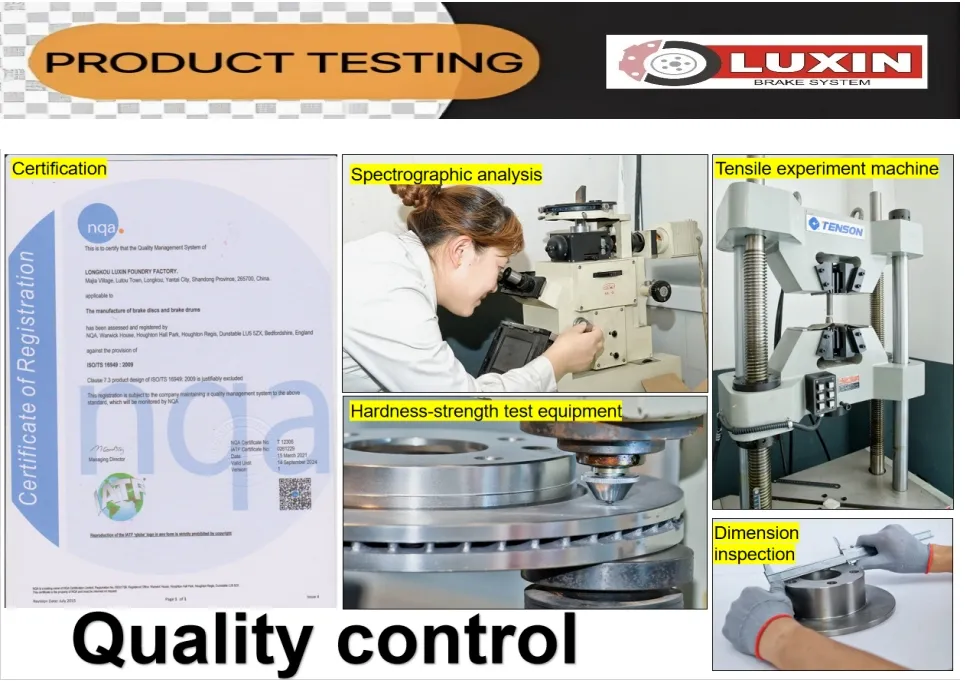

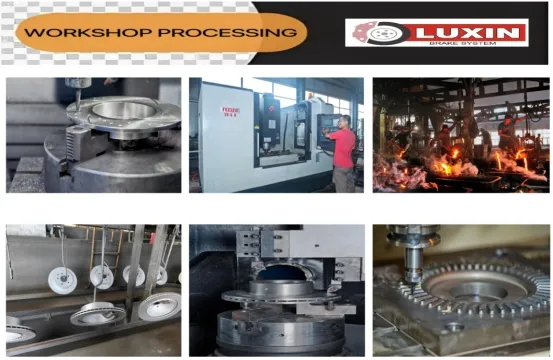

Production & Quality Control
Rigorous Testing Standard
- Dimensions run out within 0.05mm
- DTV Tolerance specification within 0.015mm
- Comprehensive material physical and chemical inspection
- Performance, noise, and NVH (Noise, Vibration, Harshness) testing
FAQ
What are your terms of packing?
Generally, we pack our goods in neutral white boxes or brown kraft paper boxes. Custom branded boxes are available with proper authorization letters.
What is your typical delivery time?
Standard delivery time is 45-60 days. The first order might require slightly more time for process alignment.
Do you test all products before delivery?
Yes, we conduct 100% testing on all goods before they are dispatched to ensure OE quality standards.
What is your sample policy?
We can supply samples if parts are in stock; however, customers are responsible for the sample and courier costs.
Can you produce items under a private brand?
Yes, private branding and custom marking (stamping) on goods are always welcomed based on customer requirements.
What is the MOQ for a specific reference?
The minimum order quantity (MOQ) for a single item reference is 50 pieces.
