| Parameter | Details |
|---|---|
| Product Name | Front Brake Disc / Brake Rotor |
| OEM Part Number | 43512-60180 (4351260180) |
| Interchange Part Numbers | 09.A966.11 / DF6239S / BG9067 / 92204603 |
| Vehicle Application | Toyota Land Cruiser 200 (VDJ200, UZJ200, URJ202), Lexus LX570 |
| Fitting Position | Front Axle (Left & Right) |
| Brake Disc Type | Internally Vented |
| Outer Diameter (Ø) | Approx. 340.0 mm |
| Brake Disc Thickness | Approx. 32.0 mm (Minimum Thickness: 29.0 mm) |
| Total Height | Approx. 83.3 mm |
| Centering Diameter | Approx. 112.0 mm |
| Rim Hole Number (Bolt Pattern) | 5 Holes |
| Bolt Hole Circle Ø (PCD) | Approx. 150.0 mm |
| Material | High-grade G3000 / Grey Cast Iron |
| Standard Packing | Neutral Box or Customized Packaging |

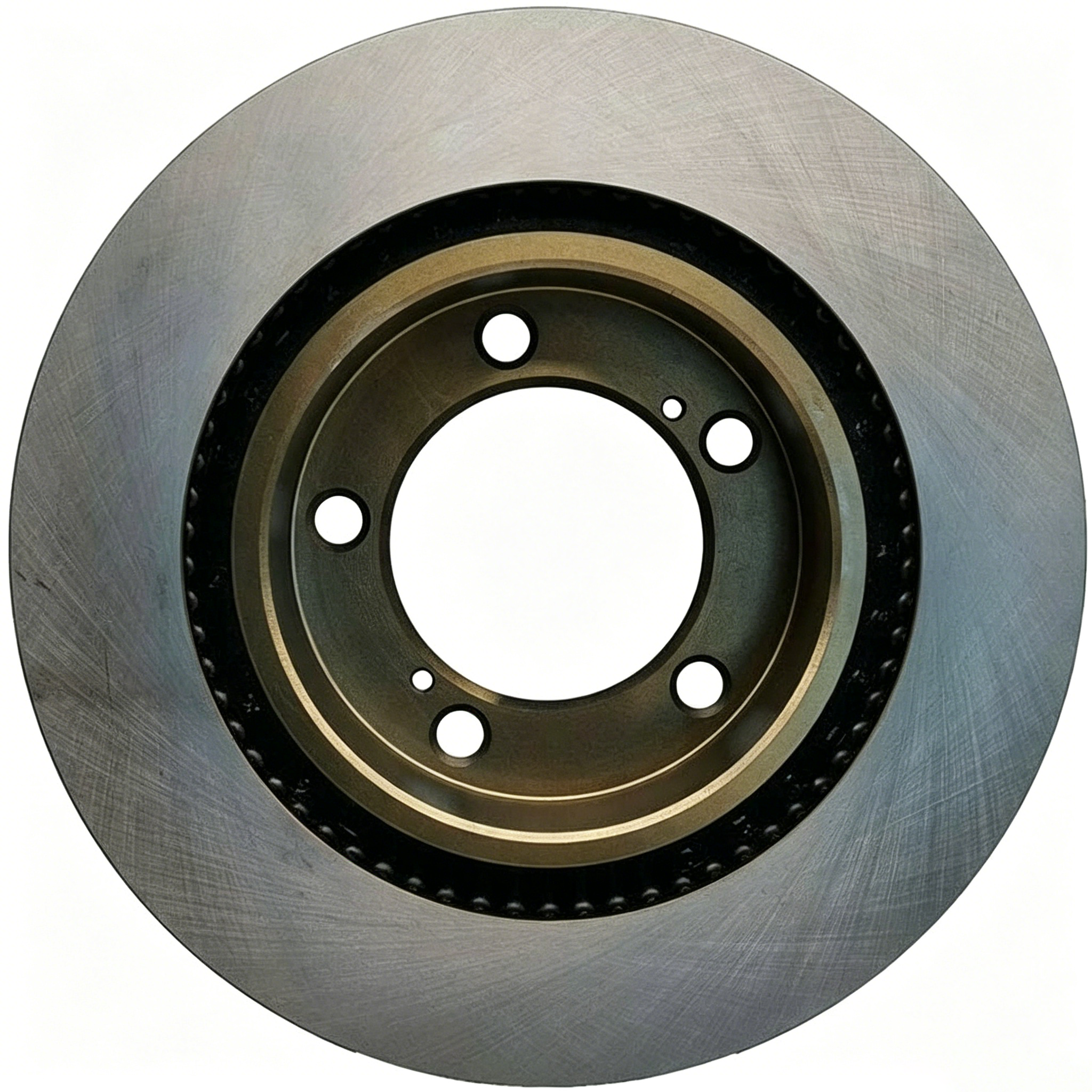

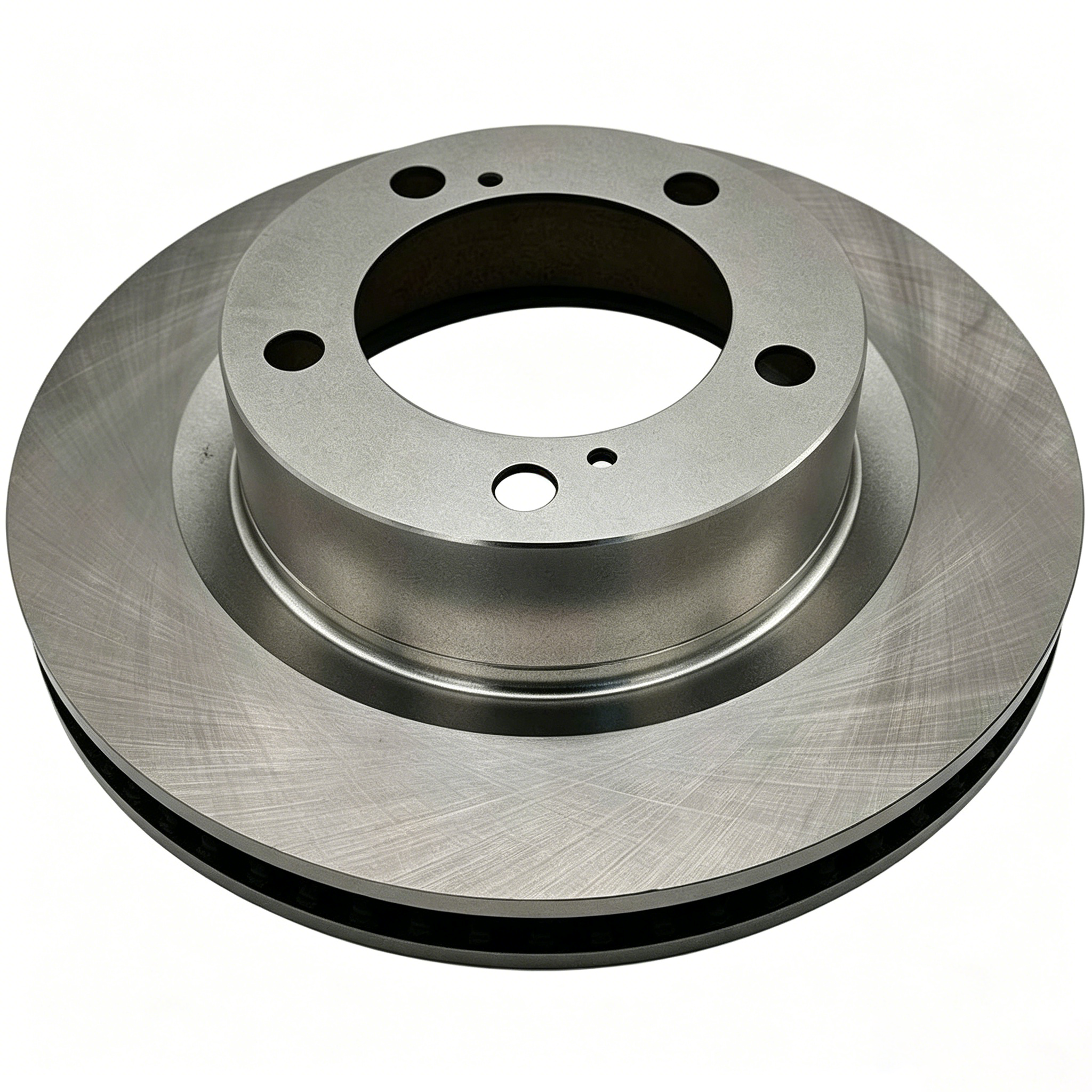

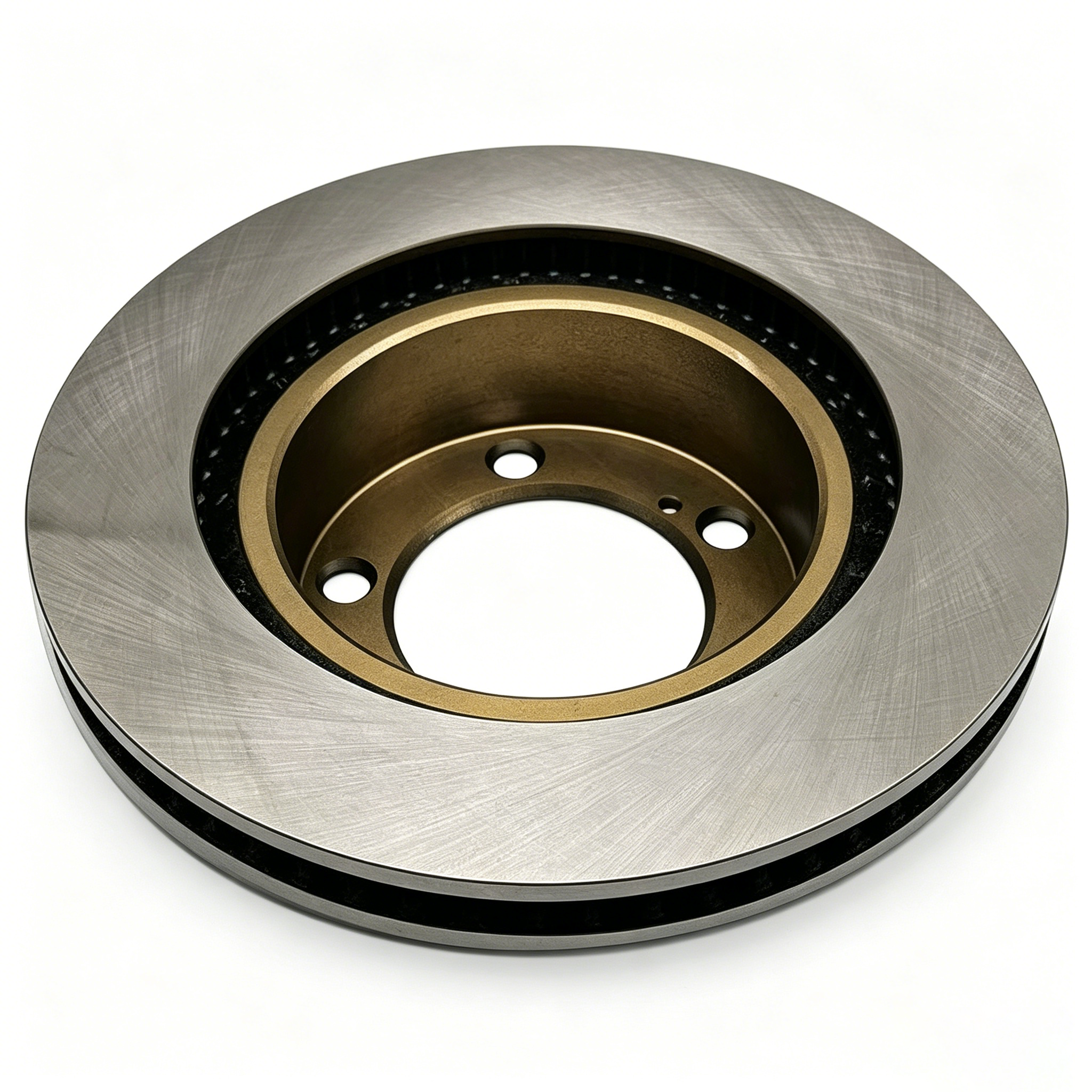

This front brake disc is specifically designed for the Toyota Land Cruiser 200 (including VDJ200, UZJ200, and URJ202 models) and the Lexus LX570.
The OEM part number is 43512-60180 (4351260180). Interchange numbers include 09.A966.11, DF6239S, BG9067, and 92204603.
These brake rotors are constructed using high-grade G3000 Grey Cast Iron to ensure durability, optimal heat dissipation, and stable braking performance.
The disc features an outer diameter of approximately 340.0 mm, a thickness of 32.0 mm (with a minimum thickness limit of 29.0 mm), a total height of 83.3 mm, and a centering diameter of 112.0 mm.
Standard packaging includes neutral boxes to protect the rotors during transport. Custom packaging options can also be provided based on requirements.
